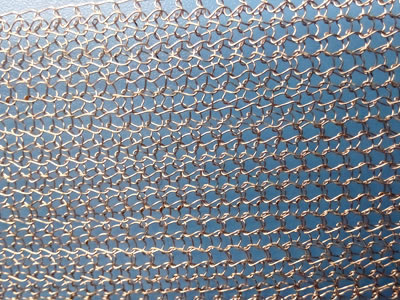

Knitted Wire Mesh

Knitted wire mesh also named filter wire mesh.

Wire Materials: Stainless steel wire, copper wire, galvanized iron wire

Process: Crochet weaving.

Wire diameter: from .0035” to .0200” the wires can be round or flat.

Mesh size: 2x3mm, 4x5mm,12x6mm or as the customers’ request.

Width: from 2 inches to 43 inches

Surface: can be flat or corrugated.

General Use: It can used as filter mesh for gas and liquid in filtering and deleting the particle mixture in foam, liquid and air, by way of distillating, absorbing, evaporating and filtering process. So it used in petroleum, chemicals, metallurgy, machine, pharmaceuticals, automobile and environmental protection filed.

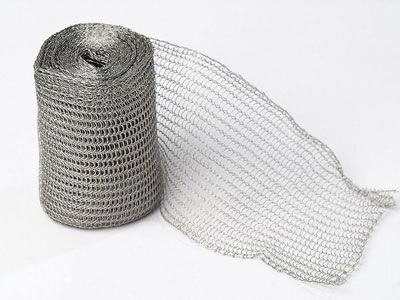

Stainless steel knitted mesh refers to knitted mesh made of stainless steel wire. It is a nonwoven wire mesh or cloth product. The stainless steel knitted mesh is the most widely used type among all material knitted meshes.

Stainless steel knitted mesh can be made of mono-filament or multi-filament. Mono-filament knitted mesh is the simplest type, which can be used in the common applications and the multi-filament knitted mesh has higher strength, which can be used in the heavy duty applications.

Specification of flat wire stainless steel knitted mesh

Items	Wire Diameter (mm)	Mesh Opening/ Loop Size (mm)	Number of Needles	Maximum Width (mm)	Minimum Width (mm)
SSK-36	0.1 × 0.3	2 × 4	36	60	55
SSK-34	0.1 × 0.3	4.5 × 4 2.5 × 4	34	150	100
SSK-40	0.1 × 0.4	4.5 × 5.5 2.5 × 5.5	40	150	120
SSK-56	0.1 × 0.4	4 × 3.5 2.5 × 3.5	56	205	180
SSK-65	0.1 × 0.4	4 × 4 3 × 4	65	260	240
SSK-94	0.2 × 0.4	5.2 × 3.5 3 × 3.5	94	420	380
SSK-102	0.2 × 0.4	7.5 × 5 5 × 5	102	565	490
SSK-128	0.2 × 0.5	5 × 4 2.5 × 4	128	560	470
Note: Knitted mesh length can be customized according to customers' requirements.

Specification of round wire stainless steel knitted mesh

	Wire Diameter (mm)	Width (mm)	Number of Stitches Per cm on Length	Number of Stitches Per cm Across Lay Flat
Fine Mesh	0.08 – 0.18	6 - 300	3.5	4.4
Medium-fine Mesh	0.16	40 - 600	2.4	3.5
Standard Mesh	0.18 - 0.35	30 - 1000	1.6	1.9
Coarse Mesh	0.25 - 0.40	30 - 1000	1.6	0.74
Super Coarse Mesh	0.4 - 0.5	100 - 350	0.5	0.5

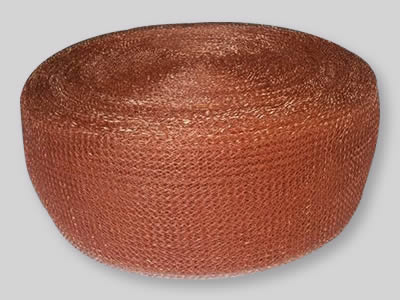

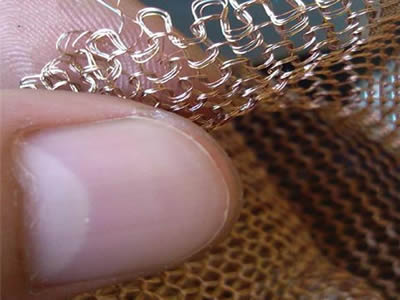

Copper knitted mesh is available for two main materials: one is pure copper, which contains 99% copper and the other is tinned copper, which contains 6% - 8% tin.

The materials are knitted into knitted mesh. The knitted mesh can be mono-filament and multi-filament. The mono-filament is the simplest structure of knitted mesh and the multi-filament knitted mesh has higher strength and can be used in more applications.

Advantages of copper knitted mesh

   • High strength.
   • Firm structure.
   • Will not scratch or mar.
   • Never rust.
   • Non-flammable.
   • Resistant to disintegration.
   • Reusable.
   • Long service life.
